Laser Beam Combiner Lens Diameter 25mm for CO2 Engraving Cutting Machine to Adjust Light Path and Make Laser Visible

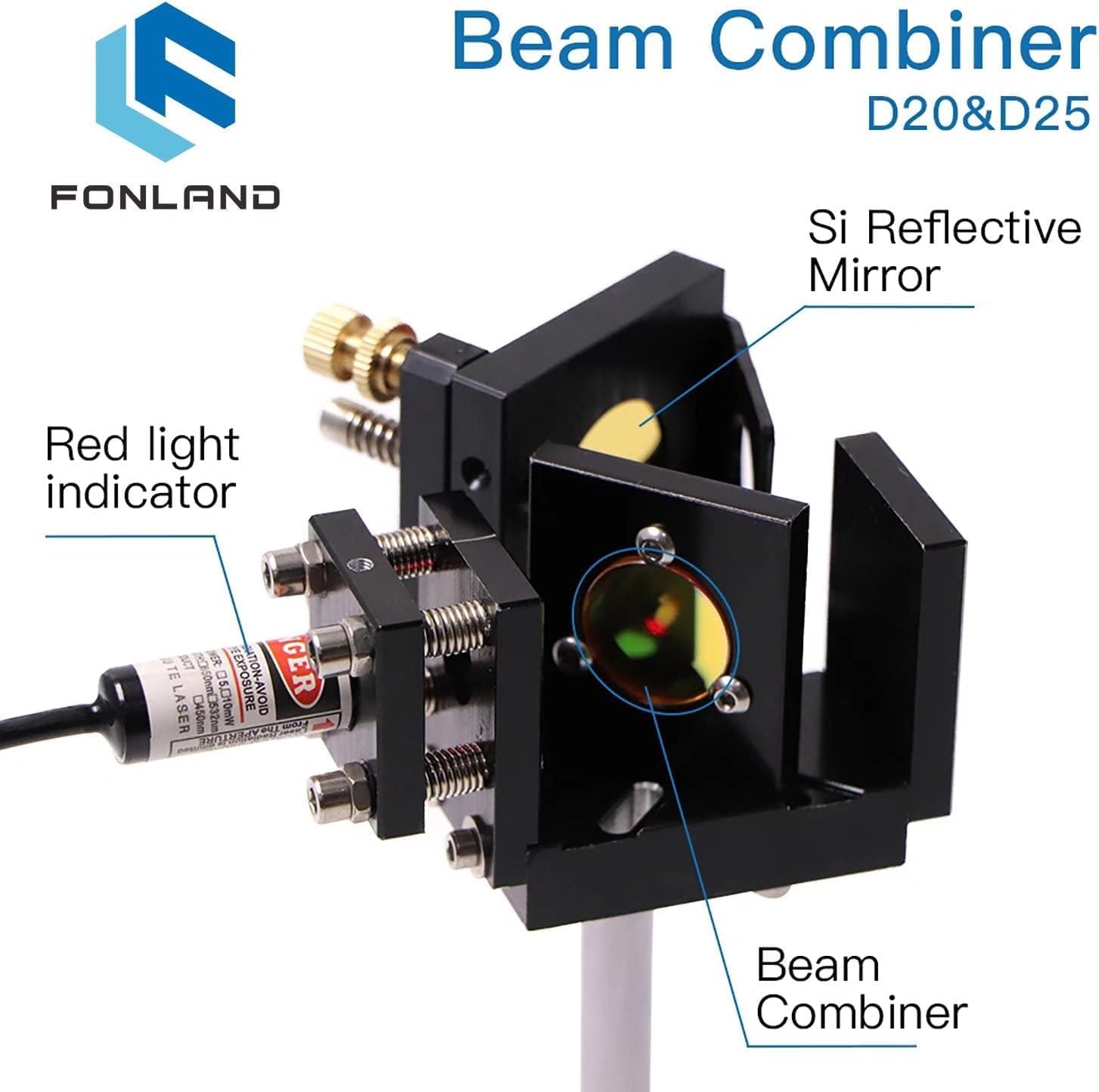

FONLAND CO2 Laser Beam Combiner Lens ✔Principle: The beam combiner is a half-mirror, it make the two or more wavelengths of light synthesized into one optical path by the transmission and reflection methods. ✔Function: Combine the visible red line with the invisible 10.6um CO2 laser line to make the laser beam visible. ✔Application: Widely used in CO2 laser industry, mainly make laser and light visible. It’s generally used to combine the 10.6um infrared laser and 500-700nm red light together. Specification Material: USA CVD ZnSe Wavelength: 10.6μm Diameter: 20mm/0.79inch, 25mm/0.98inch Thinkness (mm/inch): 2mm/0.08inch Dia. Tol: ±0.1mm Thk.Tol: ±0.1mm CA: ＞90% Coating: AR&10.6μm；HR&500-700nm Note: This item not include the Beam Combiner Mount, Include a pcs Beam Combine Lens.

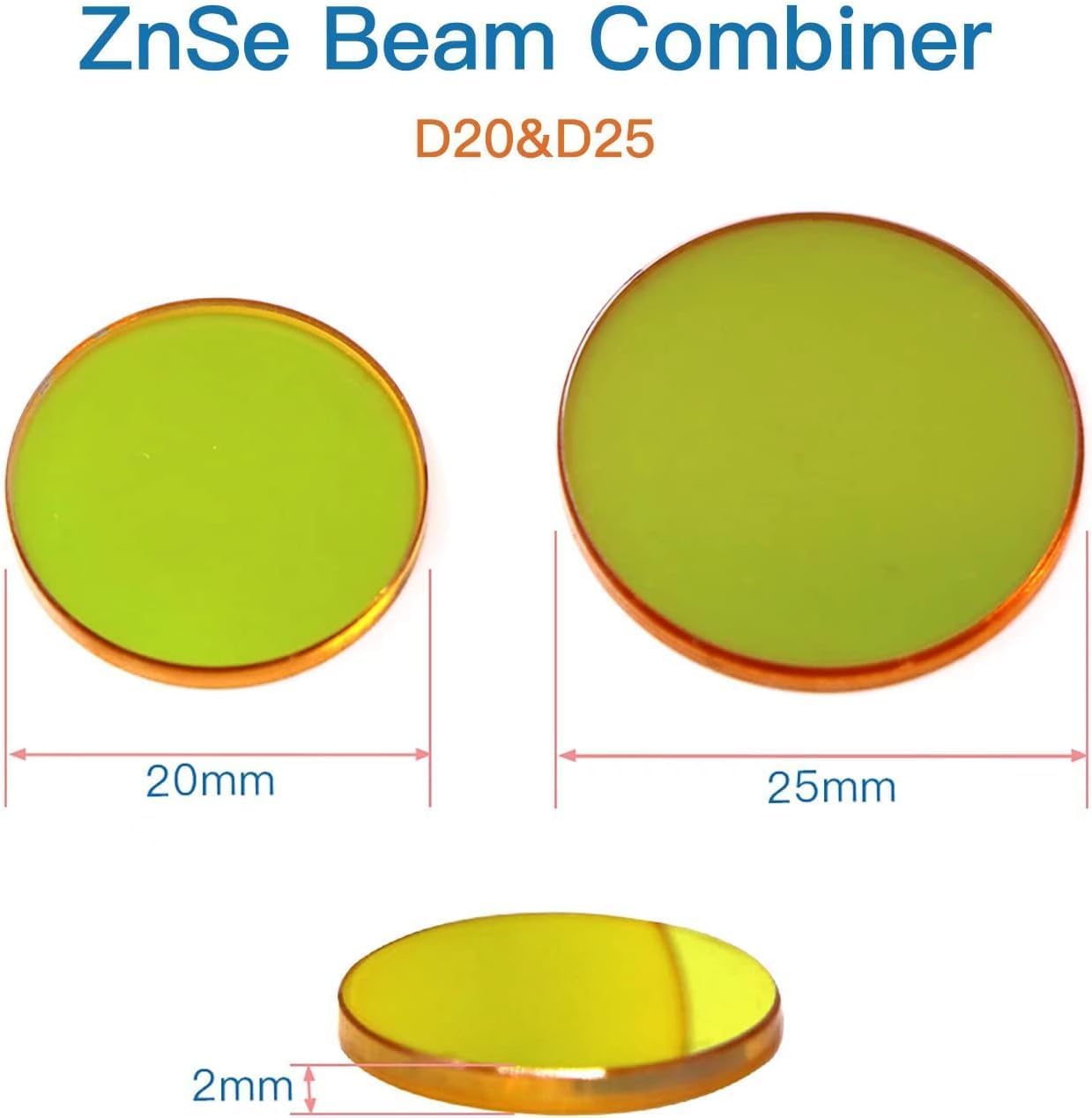

• ✔Material: USA CVD ZnSe; Diameter: 25mm/0.98inch; Thickness : 2mm.
• ✔Principle: The beam combiner is a half-mirror, it make the two or more wavelengths of light synthesized into one optical path by the transmission and reflection methods.
• ✔Function: Combine the visible red line with the invisible 10.6um CO2 laser line to make the laser beam visible.
• ✔Application: Widely used in CO2 laser industry, mainly make laser and light visible. It’s generally used to combine the 10.6um infrared laser and 500-700nm red light together.
• ✔Package Includes: 1x Beam Combiner Lens.
